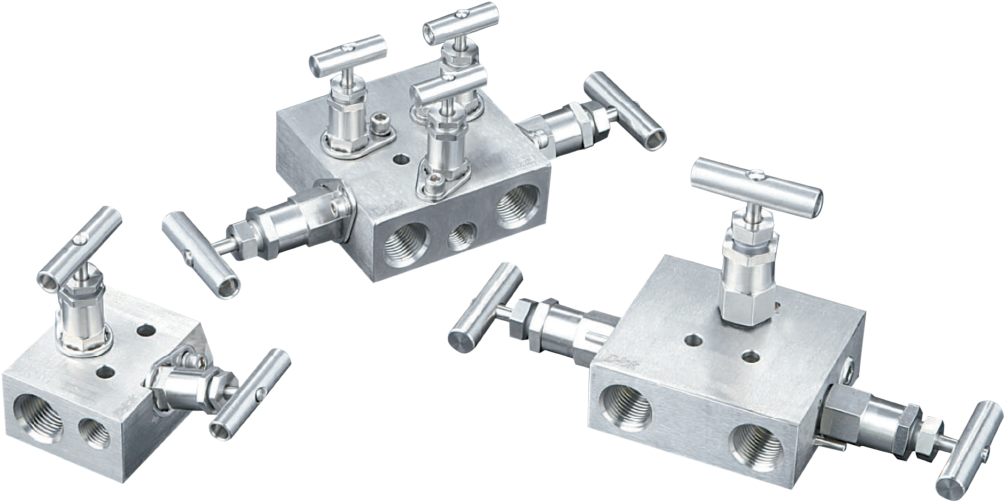

· 2, 3, and 5-Valve instrument manifolds
· All 316 stainless steel construction with PTFE packing
· Working pressures up to 6000 psig (413 bar)
· Temperatures up to 1200℉ (648℃) with Grafoil valve packing
· All series are available to produce as special type

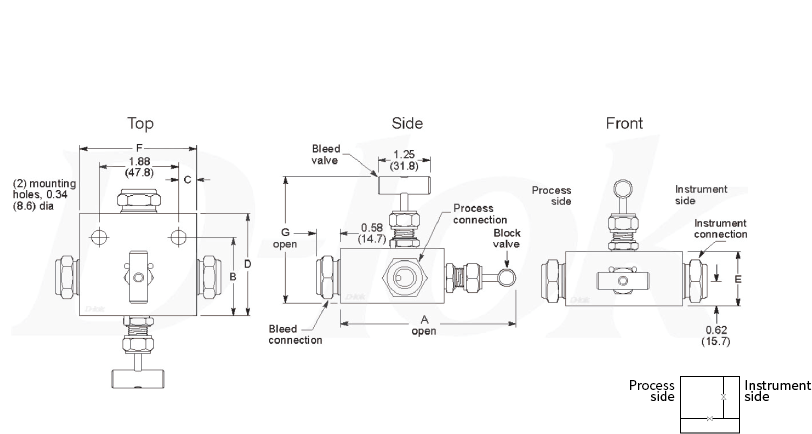

· Allows for block and bleed (or calibration) of static pressure transmitter or gauge
· Consists of one block valve and one bleed vave
· End connections-1/2” and 12mm female D-lock tube fitting : 1/2” female pipe(NPT)
· Horizontal body style
· Direct instrument mount and remote mount

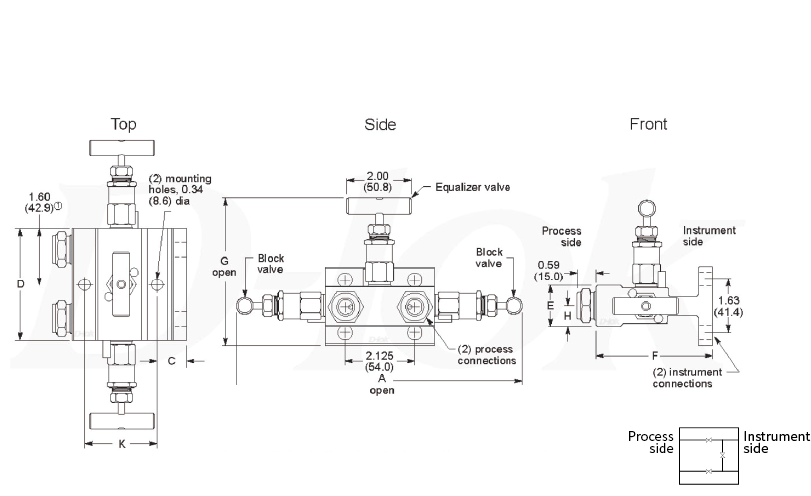

· Designed for mounting on differential pressure transmitters with 2 1/8”(54mm) center-to-center connections
· Consists of two block valves and one equalizer valve
· End connections-1/2” and 12mm female D-lock tube fitting, 1/2” female pipe(NPT)
· Horizontal body style
· Direct instrument mount and remote mount

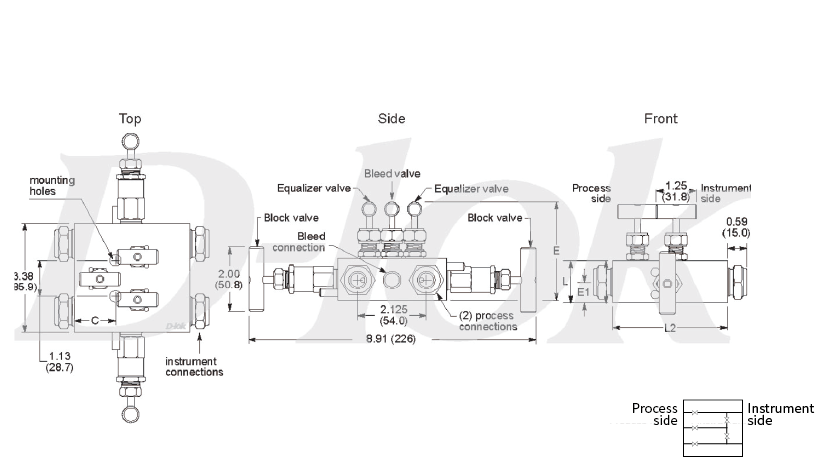

· Designed for mounting on differential pressure transmitters where a double-equalize function is required
· Consists of two block valves, two equalizer valves, and one bleed valve
· End connections-1/2” and 12mm female D-lock tube fitting, 1/2” female pipe(NPT)
· Horizontal body style
· Direct instrument mount and remote mount
