For working pressure up to 1000psig (69bar)
For use with 1/4”~1” tube and piping system

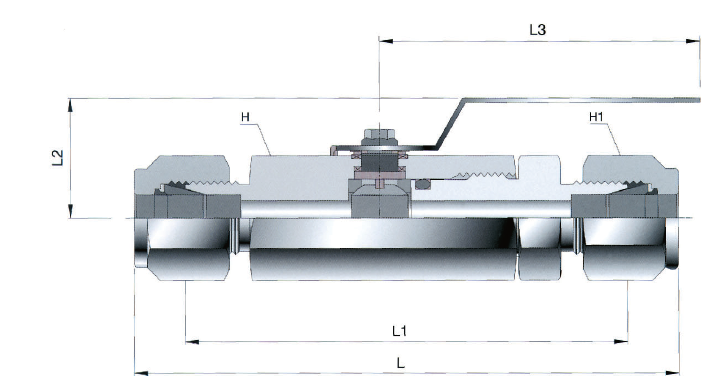

Ordering Information and Table of Dimensions
Compact design wigh one piece hexagon body construction.
2-way straight pattern.
Free floationg ball design provides seat wear compensation.
Micro-finished ball provides a leak-tight seal.
Positive and safe handle stop.
Low operting torques with stainless steel lever handle.
Provide quick 1/4 turn on-off control.
Color coated stainless steel lever handle.
Handle indicate flow direction.
Various and connections.

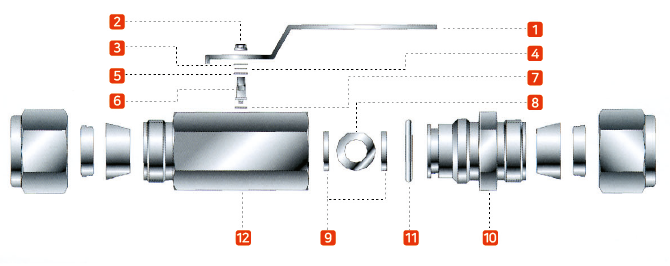

Materials of Construction

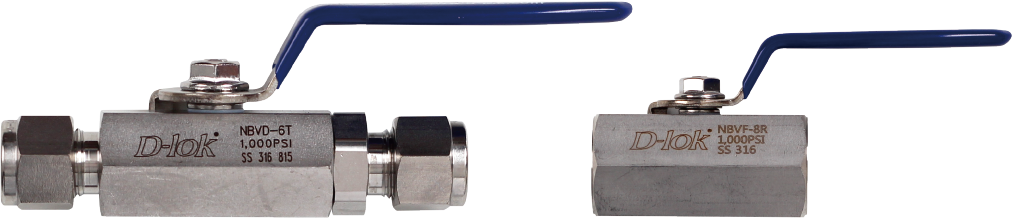

Every NATMAN 100 Series Ball Valve is factory testing at 1000 psig (69bar) with nitrogen.
Seat tests have a maximum allowable leak rate of 0.1 std ㎤/min.
The packing is tested with nitrogen for no detectable leakage.
Cleaning and Packaging
All valves are cleaned and packaged in accordance with D-LOK standard cleaning and packaging procedures.
Safety in Valve Selection
Selections of valve function and rating, proper installation, material compatibility, opertion and maintenance of these valves
are the responsibility of the user.
The system design, application must be taken into consideration to ensure optimal performance and safety.
We accept no liablity for any improper selection, installation, operation or maintenance.
